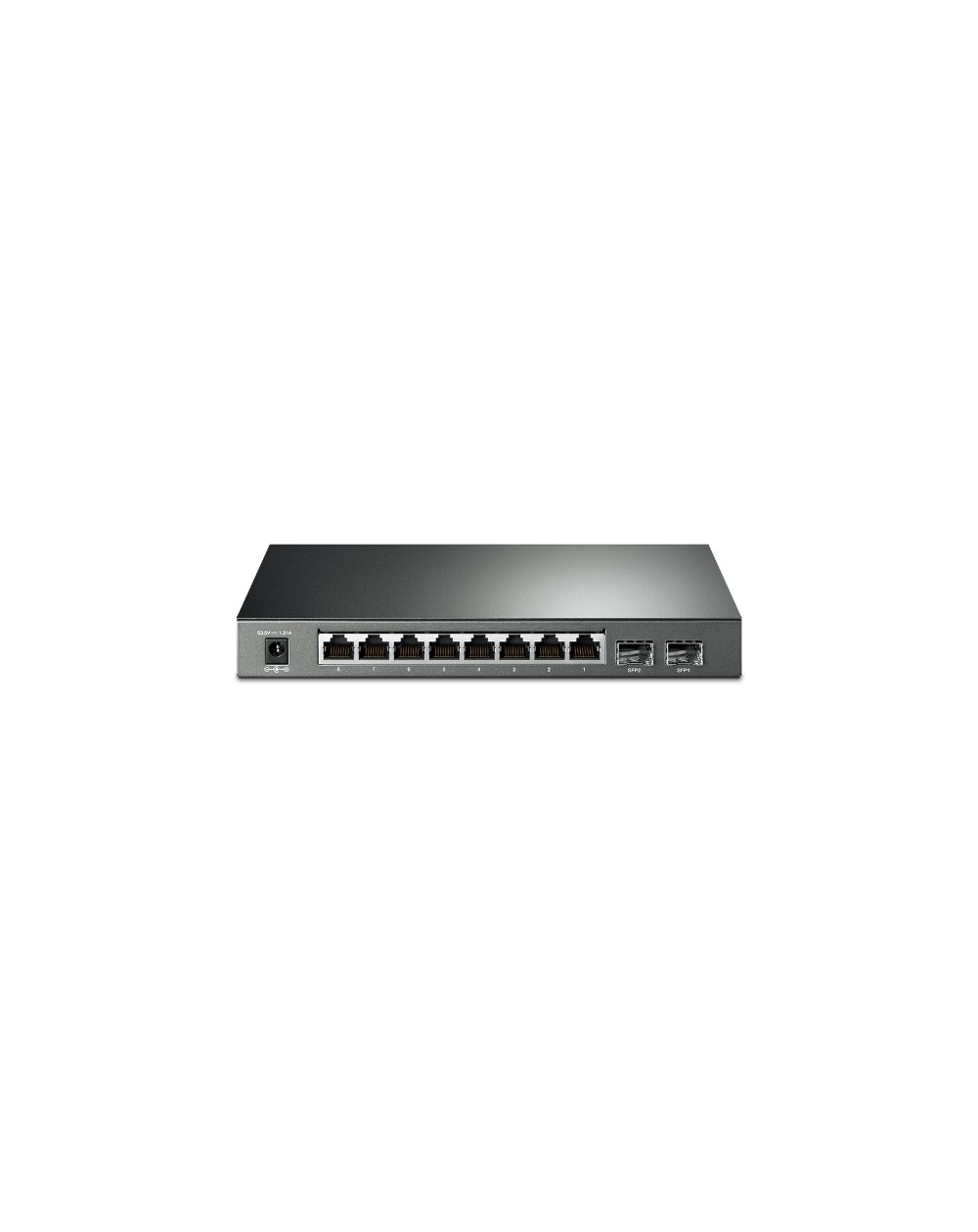

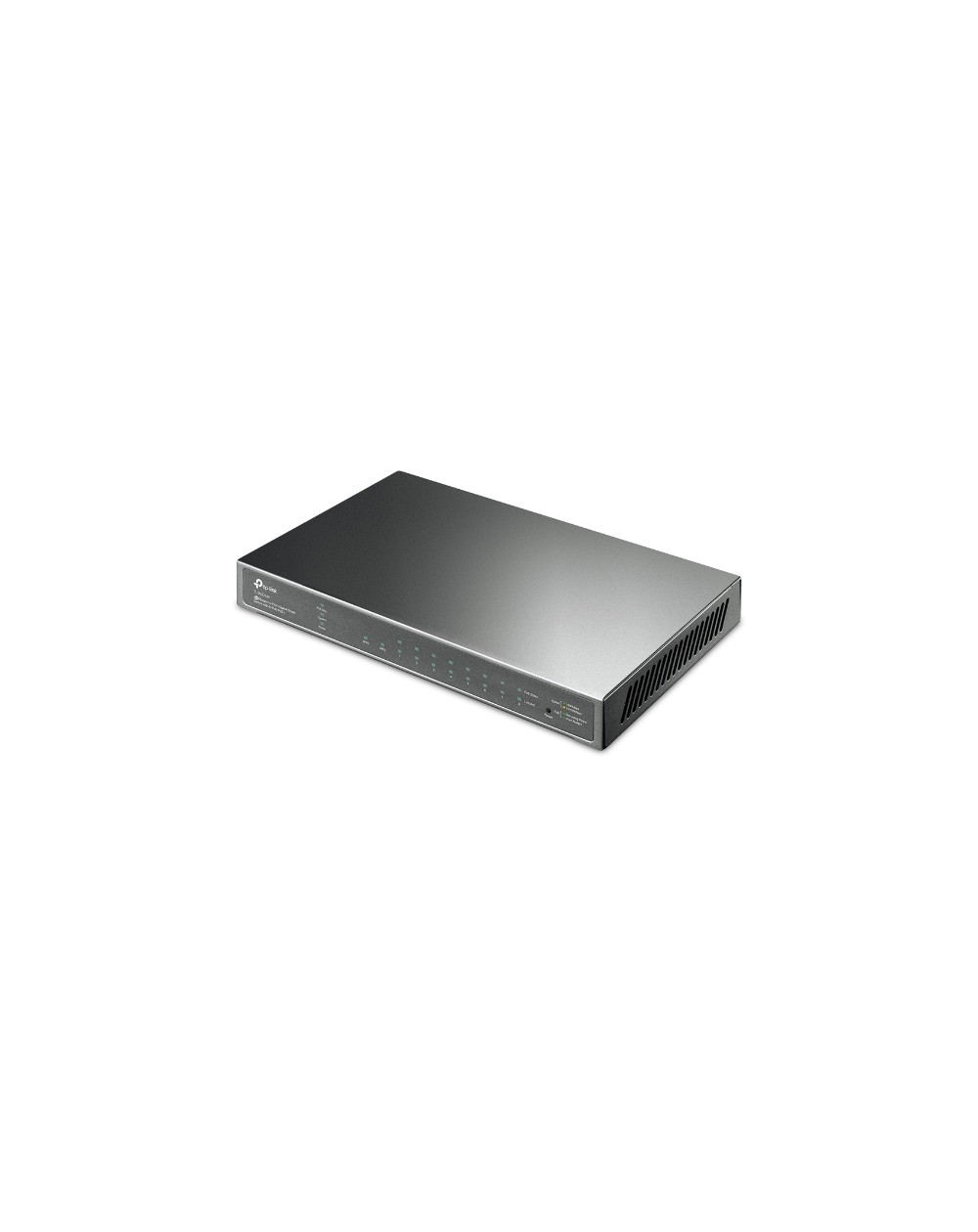

Switch TP-LINK JETSTREAM 8 PORTS GIGABIT SMART PoE+ AVEC 2 PORTS SFP (TL-SG2210P)

SWITCH TP-LINK JETSTREAM 8 PORTS SMART PoE+ AVEC 2 PORTS SFP (TL-SG2210P)

Standards et Protocoles IEEE 802.3i, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab,

IEEE 802.3ad, IEE 802.3af, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s,

IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x

Interface 8 10/100/1000Mbps RJ45 Ports

2 1000Mbps SFP Slots

(Auto-Negotiation/Auto MDI/MDIX)

Interface réseau 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)

1000BASE-X: MMF, SMF

Nombre de ventilateurs Fanless

Alimentation 100~240VAC, 50/60Hz

External Power Adapter(Output: 48VDC/1.25A)

Consommation Maximum (PoE on): 63.4W (220V/50Hz)

Maximum (PoE off): 10.4W (220V/50Hz)

Ports PoE (RJ45) Standard: 802.3af compliant

PoE Ports: 8 Ports

Power Supply: 53W

Dimensions (LxPxH) 209 x 126 x 26mm

PERFORMANCES

Bande passante/ backplane 20Gbps

Taux de transfert de paquets 14.9Mpps

Tableau d’adresses MAC 8k

Mémoire tampon des paquets 512KB

Trame Géante 9216 Bytes

CARACTERISTIQUES LOGICIELLES

Qualité de Service QoS Support 802.1p CoS/DSCP priority

Support 4 priority queues

Queue scheduling: SP, WRR, SP+WRR

Port/Flow- based Rate Limiting

Voice VLAN

Fonctions N2 et N2+ • 16 IP Interfaces

– Support IPv4/IPv6 Interface

• Static Routing

– 32 IPv4/IPv6 Static Routes

• DHCP Server

• DHCP Relay

– DHCP Interface Relay

– DHCP VLAN Relay

• DHCP L2 Relay

• Static ARP

• Proxy ARP

• Gratuitous ARP

• Link Aggregation

– Static link aggregation

– 802.3ad LACP

– Up to 8 aggregation groups and up to 8 ports

per group

• Spanning Tree Protocol

– 802.1D STP

– 802.1w RSTP

– 802.1s MSTP

– STP Security: TC Protect, BPDU Filter/Protect,

Root Protect

• Loopback Detection

• Flow Control

– 802.3x Flow Control

• Mirroring

– Port Mirroring

– CPU Mirroring

– One-to-One

– Many-to-One

– Flow-Based

– Ingress/Egress/Both

• Device Link Detect Protocol (DLDP)

• 802.1ab LLDP/ LLDP-MED

VLAN Supports up to 512 VLANs simultaneously (out of 4K VLAN IDs)

Liste de contrôle d’accès L2～L4 package filtering based on source and destination

MAC address, IP address, TCP/UDP ports, 802.1p,

DSCP, protocol and VLAN ID

Time Range Based

Sécurité SSH v1/v2

SSL v2/v3/TLSv1

Port Security

Broadcast/Multicast/Unknown unicast Storm Control

802.1x and Radius Authentication、IP-Mac-Port-VID Binding、ARP Inspection、DHCP Snooping、DoS Defend

Caractéristiques Switch Niveau 2 IGMP Snooping V1/V2/V3

802.3ad LACP (Up to 6 aggregation groups,

containing 4 ports per group)

Spanning Tree STP/RSTP/MSTP

BPDU Filtering/Guard

TC/Root Protect

Loop back detection

802.3x Flow Control

LLDP(LLDP-MED)

Administration Web-based GUI and CLI management

SNMP v1/v2c/v3, compatible with public MIBs and

TP-LINK private MIBs

RMON (1, 2, 3, 9 groups)

CPU Monitoring

Port Mirroring

Time Setting: SNTP

Firmware Upgrade: TFTP & Web

System Diagnose: VCT

SYSLOG & Public MIBS

AUTRES

Certification CE, FCC, RoHS

Contenu de l’emballage TL-SG2210P

Power Adapter

Installation Guide

Resource CD

Rubber Feet

Système requis Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8, MAC® OS, NetWare®, UNIX® or Linux.

Environnement Operating Temperature: 0℃~40℃

Storage Temperature: -40℃~70℃

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
