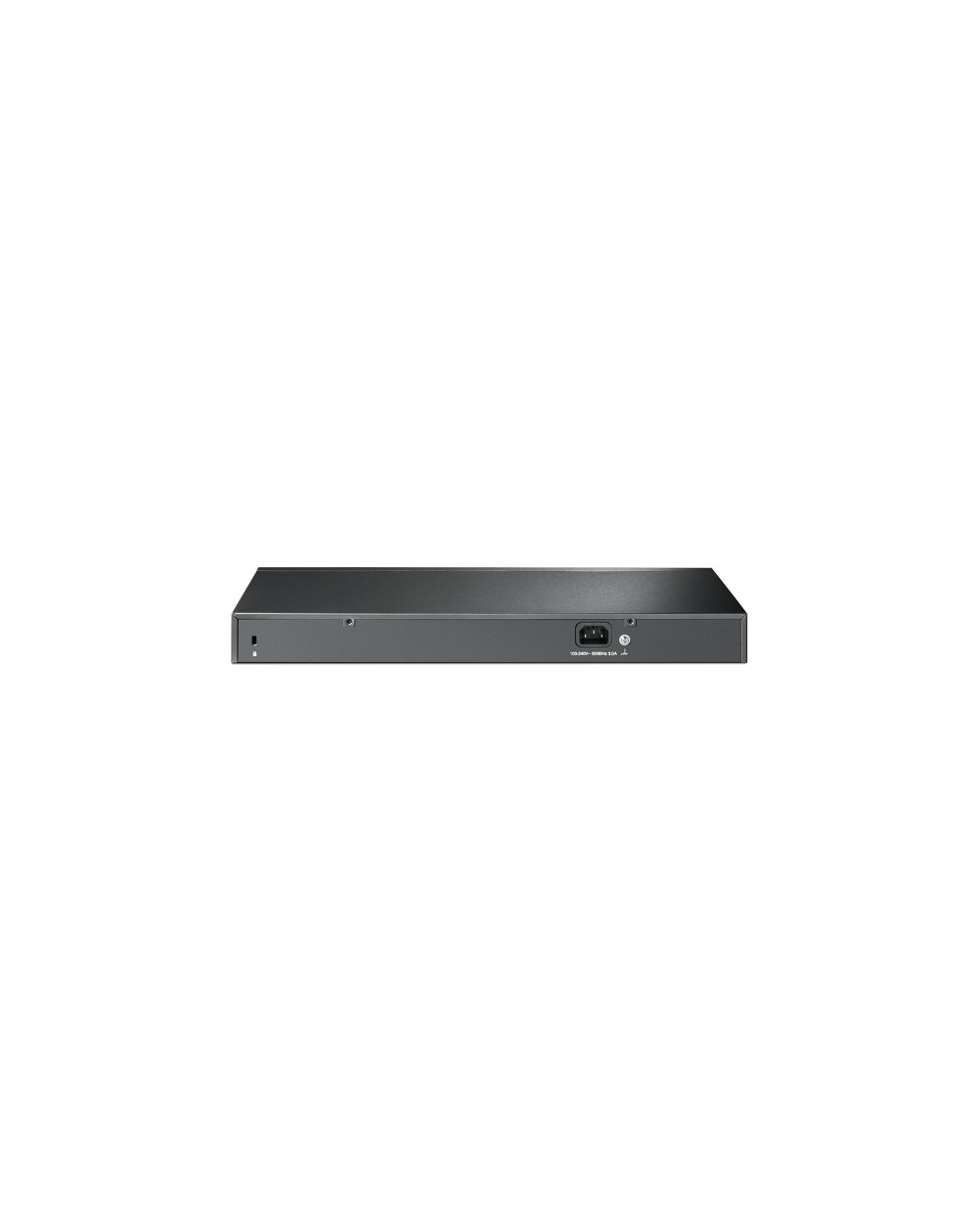

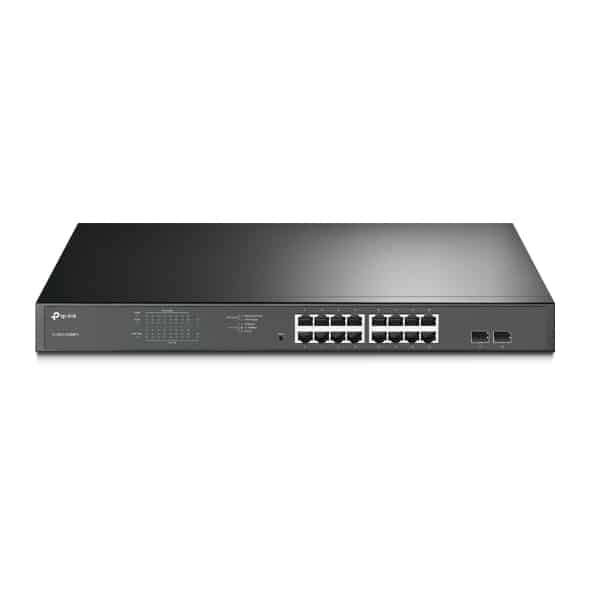

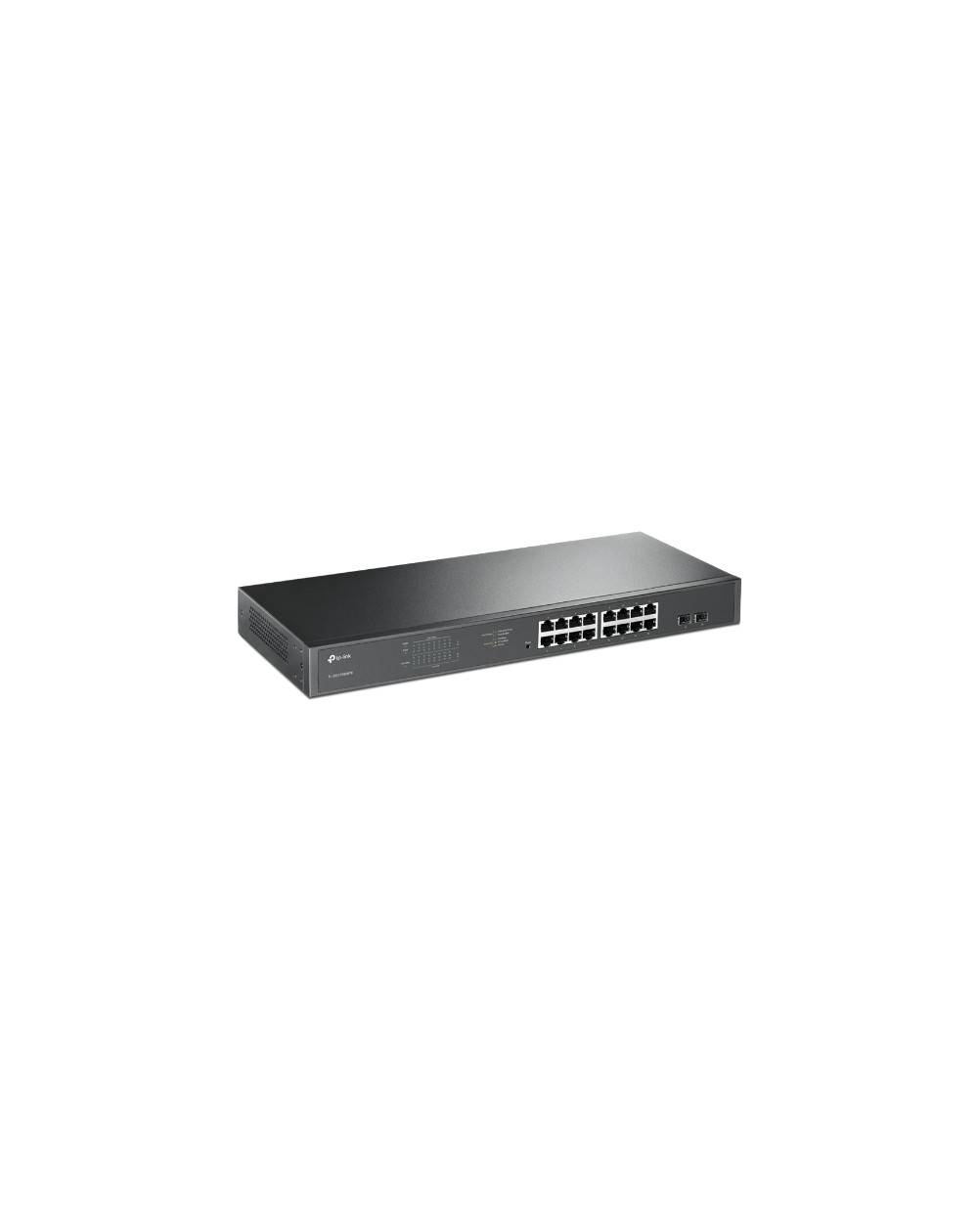

SWITCH TP-LINK JETSTREAM 16 PORTS GIGABIT EASY SMART POE/POE+ (TL-SG1218MPE)

Standards et Protocoles IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x

IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p

Interface 16 10/100/1000 Mbps RJ45 Ports

(Auto Negotiation/Auto MDI/MDIX)

2 Gigabit SFP Ports

Interface réseau 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

100BASE-TX: UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

1000BASE-X MMF, SMF

Nombre de ventilateurs 2 Fans

Système de verrou physique Yes

Alimentation 100-240V AC, 50/60 Hz

Ports PoE+ (RJ45) Standard: 802.3at/802.3af compliant

PoE+ Ports: 16 Ports

Power Supply: 192W

Dimensions (LxPxH) 440 × 180 × 44 mm

Montage Rack Mountable

Consommation maximale 18.73 W (220/50Hz. no PD connected)

217.22 W (220/50Hz. with 192W PD connected)

Max dissipation thermique 63.89 BTU/h (no PD connected)

741.15 BTU/h (with 192W PD connected)

PERFORMANCES

Capacité de commutation 36 Gbps

Taux de transfert de paquets 23.8 Mbps

Tableau d’adresses MAC 8K

Mémoire tampon des paquets 4.1 Mbit

Trame Géante 9 KB

CARACTERISTIQUES LOGICIELLES

Qualité de Service QoS Support Port-based 802.1p/DSCP priority

Support 4 priority queues

Rate Limit

Storm Control

Fonctions N2 IGMP Snooping V1/V2/V3

Static Link Aggregation

Port Mirroring

Cable Diagnostics

Loop Prevention

VLAN Support up to 32 VLANs simultaneously (out of 4K VLAN IDs)

MTU/Port/Tag VLAN

Administration Web-based GUI

Easy Smart Configuration Utility

Méthode de transmission Store-And-Forward

AUTRES

Certification CE, FCC, RoHS

Contenu de l’emballage TL-SG1218MPE

Power Cord

Installation Guide

Resource CD

Rackmount Kit

Rubber Feet

Environnement Operating Temperature: 0°C~50°C

Storage Temperature: -40°C~70°C

Operating Humidity: 10% ~ 90% non-condensing

Storage Humidity: 5%~90% non-condensing
