CARACTERISTIQUES MATERIELLES

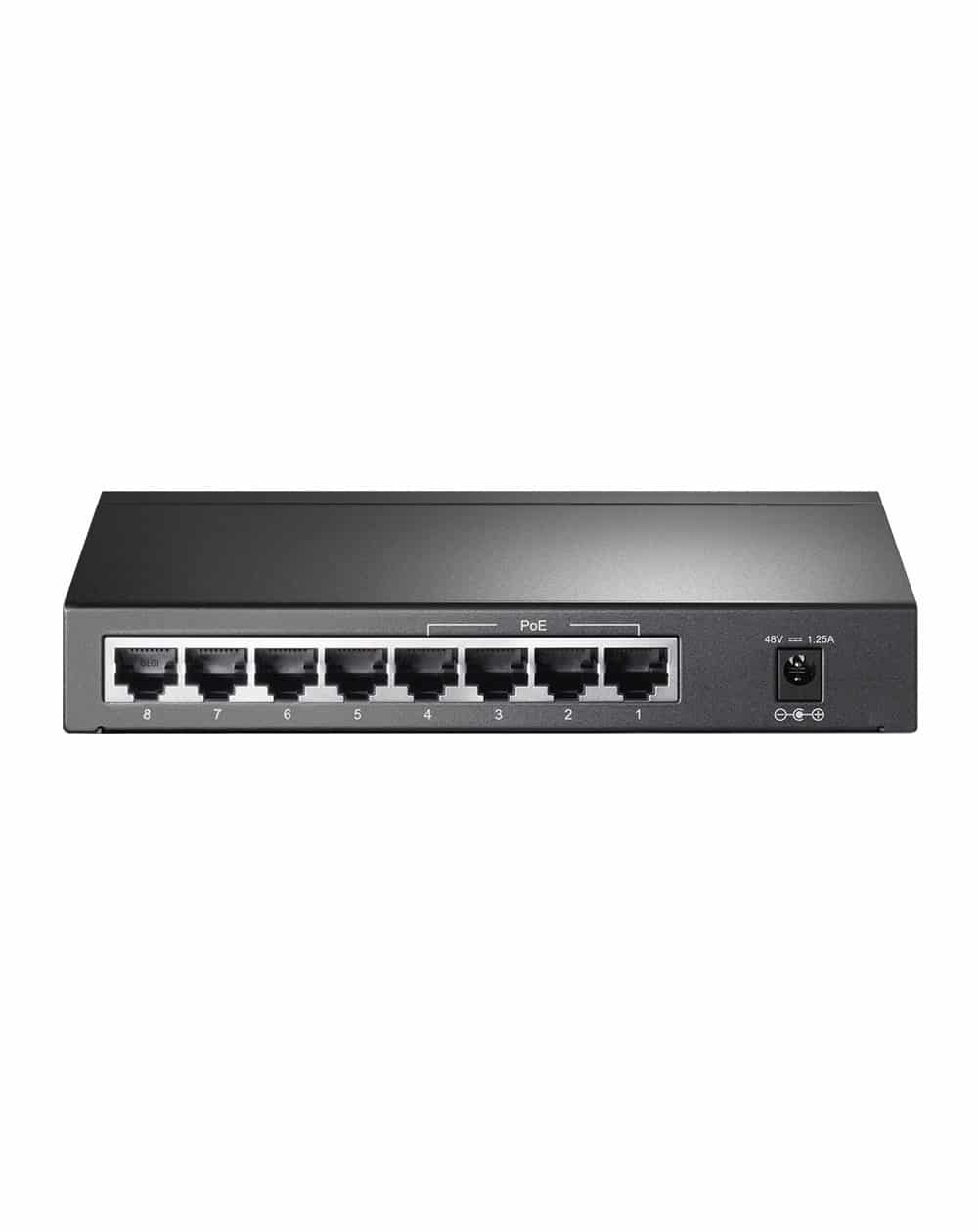

Interface 8 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Interface réseau 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Nombre de ventilateurs Fanless
Système de verrou physique No
Alimentation externe External Power Adapter(Output: 48VDC / 1.25A)
Ports PoE (RJ45) Standard: 802.3 af compliant
PoE Ports: Port1- Port4
Power Supply: 55W
Bande passante en retour 16Gbps
Tableau d’adresses MAC 4K
Dimensions (LxPxH) 171*98*27 mm
Consommation maximale 5.49W(220/50Hz. no PD connected)
65.24W(220/50Hz. with 55W PD connected)
Max dissipation thermique 18.73BTU/h(no PD connected)
222.60BTU/h(with 55W PD connected)
CARACTERISTIQUES LOGICIELLES
Méthode de transmission Store-And-Forward
Fonctions avancées Compatible With IEEE 802.3af Compliant PDs
Priority Function
Mac Address Auto-Learning And Auto-Aging
EEE802.3x Flow Control
802.1p/DSCP QoS
AUTRES
Certification CE, FCC, RoHS
Contenu de l’emballage TL-SG1008P, Power Adapter, Installation Guide
Environnement Operating Temperature: 0°C~40°C
Storage Temperature: -40°C~70°C
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing
