Routeur MODEM TP-LINK SANS FIL VDSL/ADSL AC1200 (ARCHER VR300)

CARACTERISTIQUES MATERIELLES

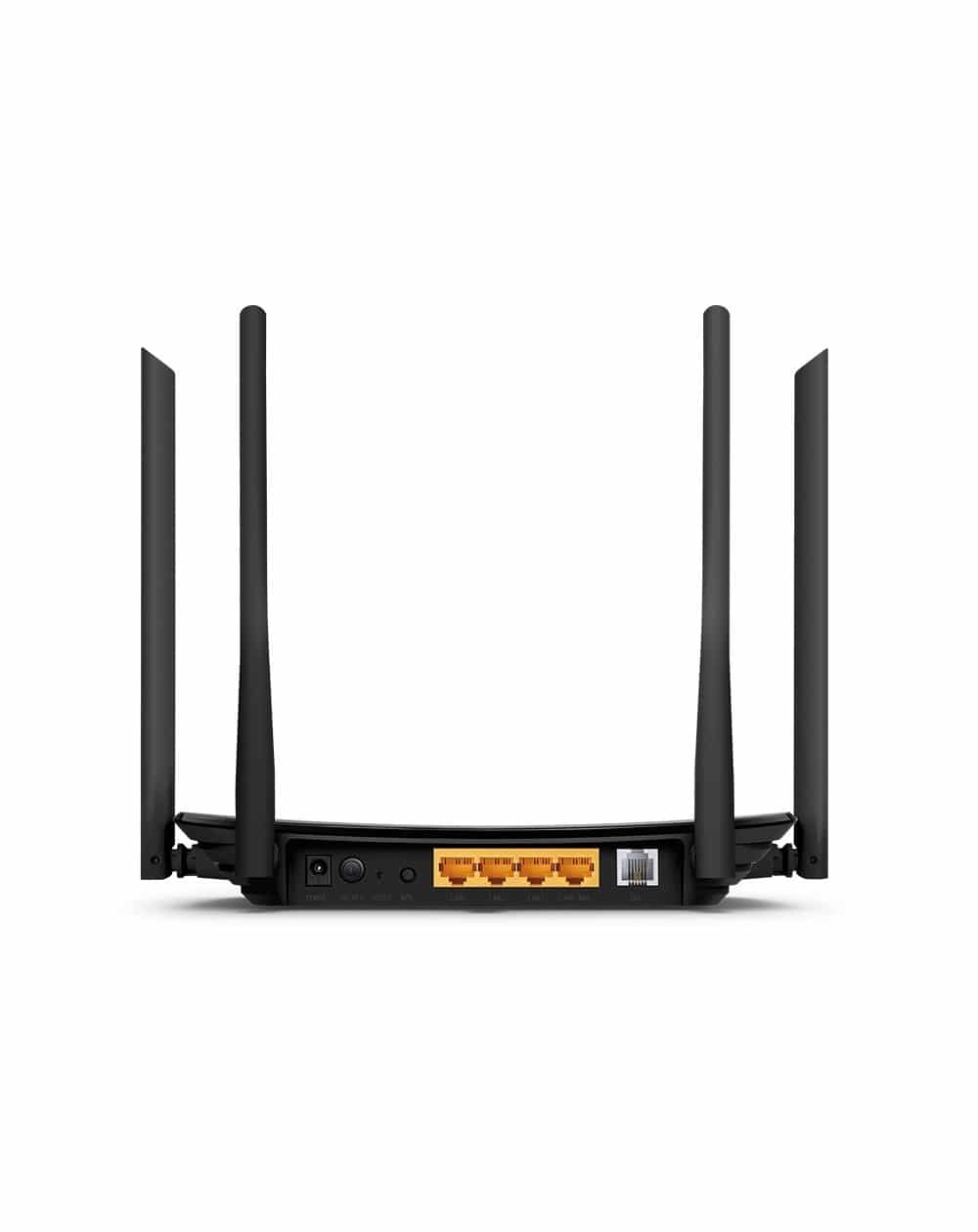

Interface 3 10/100 RJ45 LAN Ports

1 10/100 RJ45 LAN/WAN Port

1 RJ11 Port

Bouton WPS Button

Power On/Off Button

Reset Button

Alimentation 12V/1A

Standards VDSL2 ITU G.993.2, Up to 17a pro¬le (POTS)

ITU-T G.993.5 (G.vector)

ITU-T G.998.4 (G.INP)

Standards ADSL Full-rate ANSI T1.413 Issue 2,

ITU-T G.992.1(G.DMT),

ITU-T G.992.2(G.Lite),

ITU-T G.994.1 (G.hs),

ITU-T G.995.1

Standards ADSL2 ITU-T G.992.3 (G.DMT.bis),

ITU-T G.992.4 (G.lite.bis)

Standards ADSL2+ ITU-T G.992.5

Dimensions (LxPxH) 385*290*76mm

Type d’antenne 4 fixed external antennas

CARACTÉRISTIQUES WIFI

Standards WiFi IEEE 802.11a/n/ac 5 GHz,

IEEE 802.11b/g/n 2.4 GHz

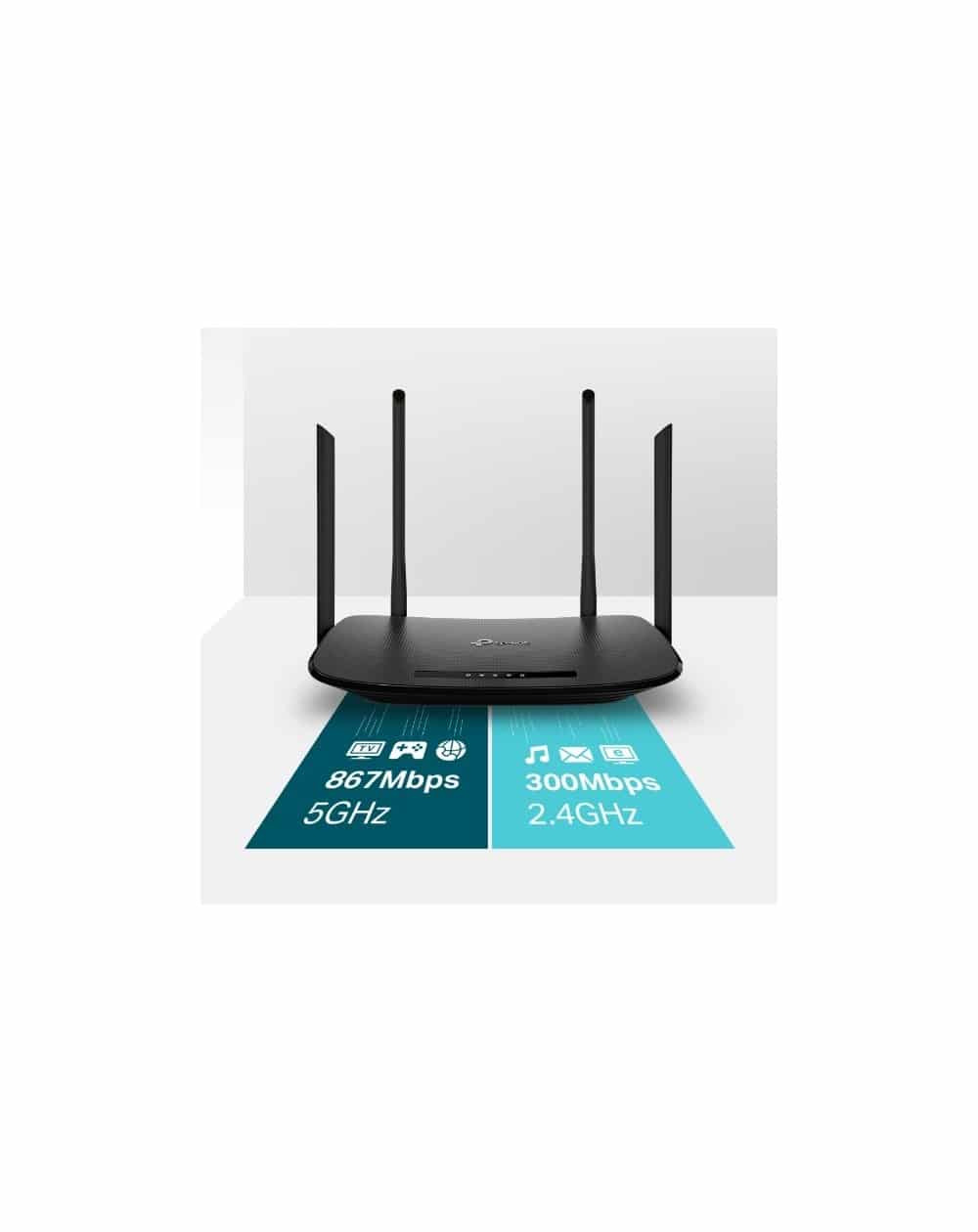

Débit WiFi 867 Mbps at 5 GHz

300 Mbps at 2.4 GHz

Puissance de transmission 2.4GHz <20dBm(EIRP)

5GHz <23dBm(EIRP)

Fonctions WiFi Access Point / Wireless Bridge, Wireless EnableDisable, SSID Broadcast EnableDisable

Sécurité WiFi WEP, WPA/WPA2, WPA-PSK/WPA-PSK2

encryptions, QSS(WPS)

CARACTERISTIQUES LOGICIELLES

Qualité de Service QoS ATM QoS, Bandwidth Control

Sécurité NAT Firewall, Access Control, IP and MAC Address Binding

Modes opératoires VDSL/ADSL Modem Router, Wireless Router

Administration Web Based Con¬guration(HTTP), Remote management,

command Line Interface, SSL for TR-069, SNMP v1/2c, Web Based Firmware

Upgrade, Diagnostic Tools

DHCP Server, Client, DHCP Client List, Address Reservation, DHCP Relay

Redirection de port Virtual Server, Port Triggering, DMZ, ALG, UPnP

DNS dynamique DynDns, NO-IP

VPN Pass-Through (ne bloque pas un lien VPN) PPTP, L2TP, IPSec Passthrough

Protocoles Supports IPv4 and IPv6

Protocoles ATM/PPP ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364),

PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), MERIPoE (RFC 1483

Routed), Bridge (RFC1483 Bridge), PVC – Up to 8 PVCs

Fonctions avancées Parental Control, Network Address Translation(NAT),

Port Mapping(Grouping), Static Routing, RIP v1/v2(optional), DNS Relay,

DDNS, IGMP V1/V2/V3

Réseau invité 2.4 GHz guest network, 5 GHz guest network

AUTRES

Certification CE, RoHS, RCMff

Contenu de l’emballage · AC1200 Wireless VDSL/ADSL Modem Router Archer VR300

· External Splitter

· RJ11 DSL Cable

· RJ45 Ethernet Cable

· Power Adapter

· Quick Installation Guide

Système requis · Microsoft Windows XP/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux

· Internet Explorer, Firefox, Chrome, Safari or other Java-enabled browser

· Subscription with an Internet Service Provider (for Internet access)

Environnement · Operating Temperature: 0℃~40℃

· Storage Temperature: -40℃~70℃

· Operating Humidity: 10%~90% non-condensing

· Storage Humidity: 5%~90% non-condensing
