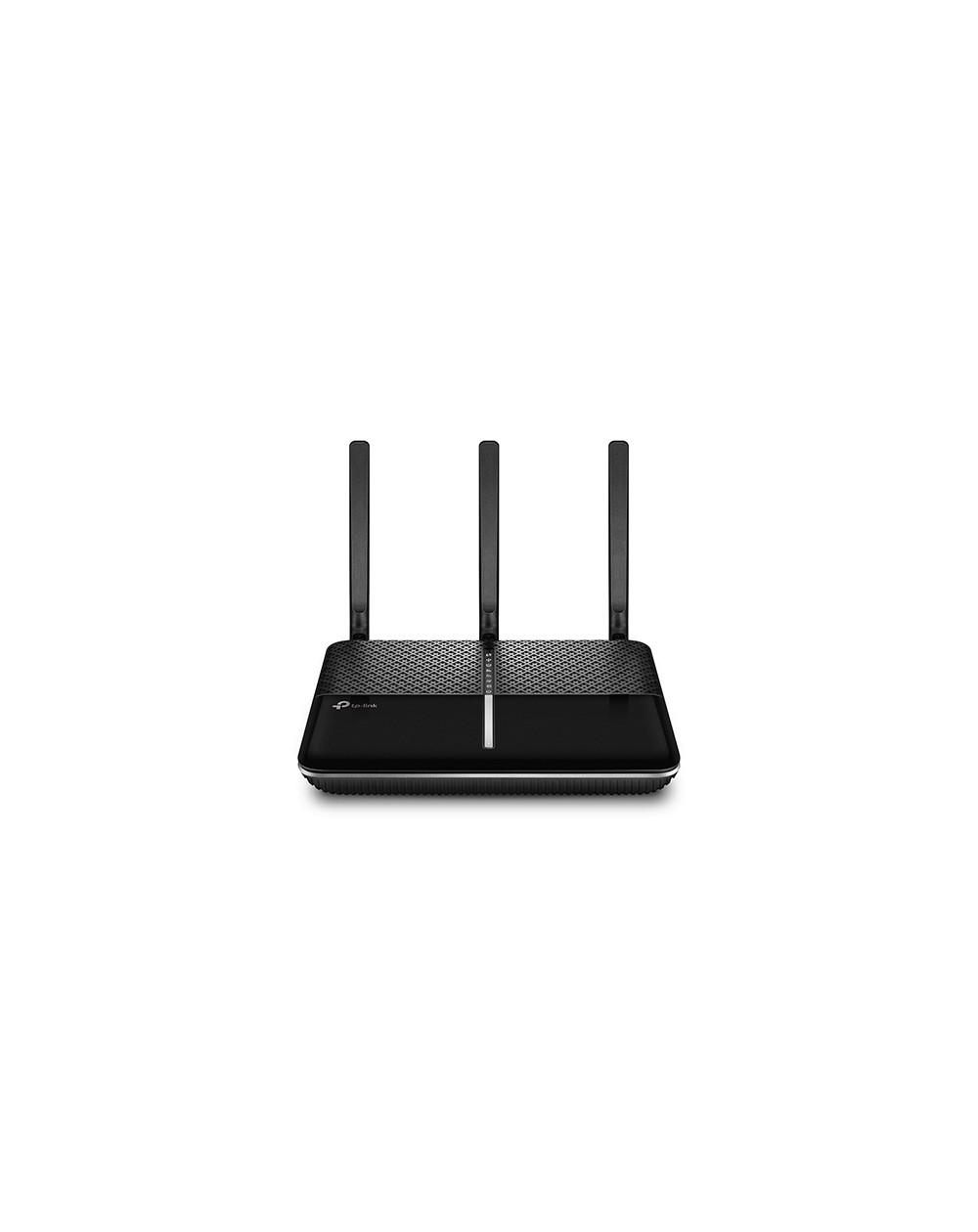

Routeur Modem TP-LINK AC1600 (ARCHER VR600)

(ARCHER VR600) ROUTEUR Modem TP-LINK AC1600

---

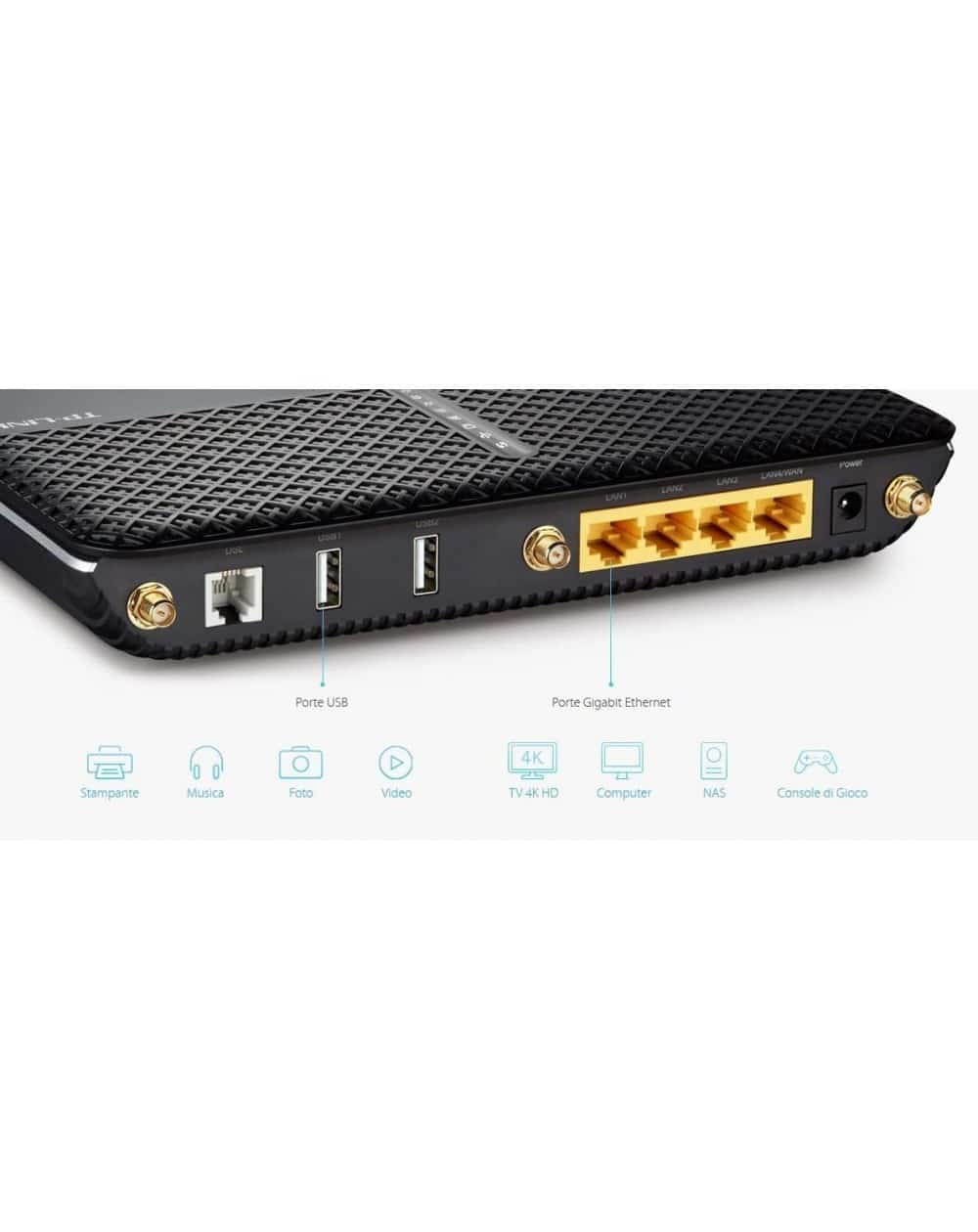

Interface 3 10/100/1000Mbps RJ 45 WAN Ports

1 10/100/1000Mbps RJ 45 LAN/WAN Ports

1 RJ11 Port

2 USB 2.0 Ports

Bouton WPS Button, LED Button, Wireless On/Off Buttons(2.4GHz & 5GHz),

Power On/Off Button

Alimentation externe 12V/2A

Standards IEEE IEEE 802.3, IEEE 802.3u, 802.3ab

Standards VDSL2 ITU-T G.993.2, Up to 17a profile (POTS)

ITU-T G.993.5 (G.vector)

ITU-T G.998.4 (G.INP）

Standards ADSL Full-rate ANSI T1.413 Issue 2,

ITU-T G.992.1(G.DMT),

ITU-T G.992.2(G.Lite),

ITU-T G.994.1 (G.hs),

ITU-T G.995.1

Standards ADSL2 ITU-T G.992.3 (G.DMT.bis),

ITU-T G.992.4 (G.lite.bis)

Standards ADSL2+ ITU-T G.992.5

Dimensions (LxPxH) 216 x 164 x 36.8mm

Type d’antenne 3 External detachable dual band antennas

CARACTÉRISTIQUES WIFI

Standards WiFi IEEE 802.11a/n/ac 5GHz,

IEEE 802.11b/g/n 2.4GHz

Fréquence 2.4GHz and 5GHz

Débit du signal 1300Mbps at 5GHz, 300Mbps at 2.4GHz

Puissance de transmission 2.4GHz <20dBm(EIRP)

5GHz <23dBm(EIRP)

Fonctions WiFi Enable/Disable Wireless Radio, WDS Bridge, WMM,

Wireless Statistics

Sécurité WiFi 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2

encryptions, Wireless MAC Filtering

CARACTERISTIQUES LOGICIELLES

Qualité de Service QoS ATM QoS, Bandwidth Control

Sécurité NAT Firewall, Access Control,

IP and MAC Address Binding

Modes opératoires VDSL/ADSL Modem Router, Wireless Router, 3G/4G Router

Administration Web Based Configuration (HTTP), Remote management,

command Line Interface, SSL for TR-069, SNMP v1/2c,

Web Based Firmware Upgrade, Diagnostic Tools

DHCP Server, Client, DHCP Client List, Address Reservation,

DHCP Relay

Redirection de port Virtual Server, Port Triggering, DMZ, ALG, UPnP

DNS dynamique DynDns, NO-IP

VPN Pass-Through (ne bloque pas un lien VPN) PPTP, L2TP, IPSec Passthrough

Protocoles Supports IPv4 and IPv6

Protocoles ATM/PPP ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364),

PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), MER\IPoE (RFC 1483

Routed), Bridge (RFC1483 Bridge), PVC – Up to 8 PVCs

Fonctions avancées Parental Control, Network Address Translation(NAT),

Port Mapping(Grouping), Static Routing, RIP

v1/v2(optional), DNS Relay,

DDNS, IGMP V1/V2/V3

Partage USB Support Samba(Storage)/FTP Server/Media Server/Printer

Server, 3G/4G Modem

Réseau invité 2.4GHz Guest Network, 5GHz Guest Network

VPN IPsec Supports up to 10 IPSec VPN tunnels

Beamforming 5GHz Band

APP Tether App

AUTRES

Certification CE, RoHS

Contenu de l’emballage AC1600 Wireless Gigabit VDSL/ADSL Modem Router

Archer VR600

External Splitter

RJ11 DSL Cable

RJ45 Ethernet Cable

Power Adapter

Quick Installation Guide

Système requis Microsoft Windows 98SE, NT, 2000, XP, Vista™ or

Windows 7, 8, 8.1, MAC OS, NetWare, UNIX or Linux

Internet Explorer 11, Firefox 12.0, Chrome 20.0,

Safari 4.0, or other Java-enabled browser

Cable or DSL Modem Subscription with an Internet

Service Provider (for Internet access)

Environnement Operating Temperature: 0℃~40℃

Storage Temperature: -40℃~70℃

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
